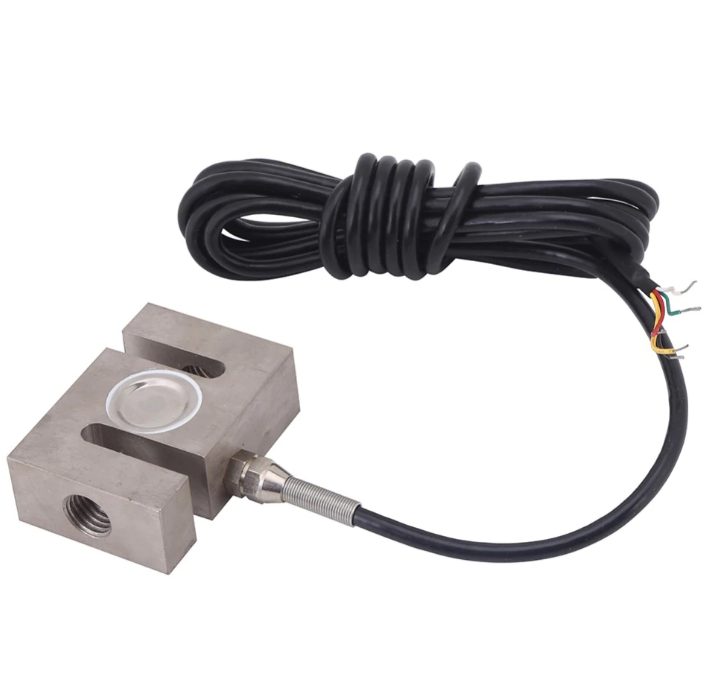

Load Cell YZC-516C (200 Kg)

This weight sensor (load cell) is suitable for electronic balance and other high accuracy electronic weighing devices.
Specifications

Dimentions

Wire Connection
The load cell acts like a bridge, it has 4 colored wires as follows

VCC:             Red wire
GND:             Black wire
Signal +:       Green wire
Signal –:        White wire

Installation in Weight Scale
It is recommended to use the load cell with Future Electronics Egypt weight scale analog to digital and amplifier module as shown in photo below. In this case you can connect the  weight scale module to your Arduino or Micro-controller through serial pins and record or display your measurements
