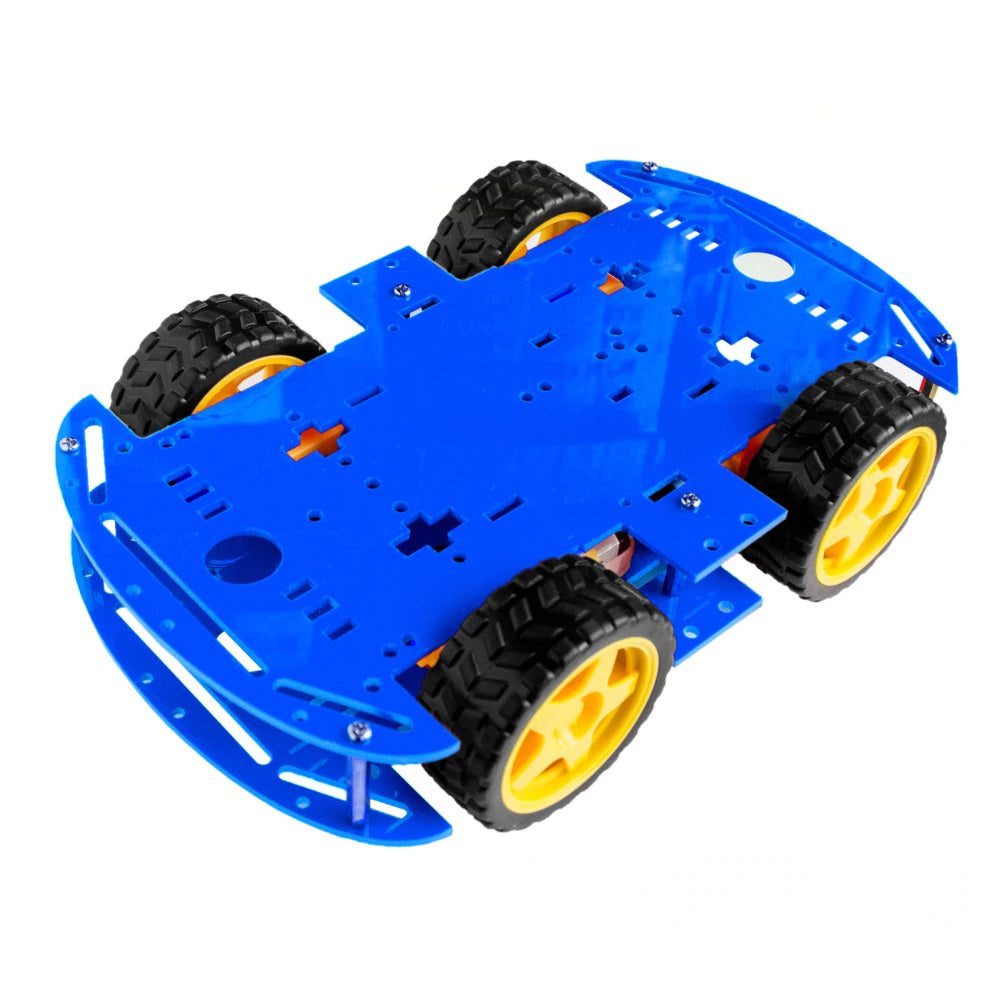

This is the 4WD robot platform featuring four gearmotors with 65mm wheels. The chassis plates contain numerous cuts and holes for mounting sensors, microcontrollers and other hardware. The space between the plates is ideal for batteries or more components.
Specifications
Motors
Suggested Voltage:4.5V DC (work well from 3-6V)
No load Speed:90±10rpm
No Load Current:190mA(max.250mA)
Torque:800gf.cm (Minimum)
Stall current approx 1A
Wheels
65mm diameter, 30mm width
Plastic rims with solid rubber tyres
Chassis
Laser cut acrylic
Metal standoffs
Top and bottom plates are both 110mm long x 174mm wide
